Optics in motion

3D workpiece processing

varioSCAN II focusing units enable highly dynamic and exceptionally precise positioning of the laser focus along the beam direction. The z axis extends 2D scanning systems for 3D processing or replaces expensive objectives in flat field correction. The product series offers a wide range of different sizes, optics designs and functional upgrades (e.g. integrated encoder ). Each system design is tailor-made for the customer's application.



Features of the varioSCAN II

  • Position independence for installing the z axis in any orientation
  • Clean optimised design for high laser power
  • Revised optics configurations concerning image quality, wavelength range and power compatibility
  • Compact design for easy installation



Variants

varioSCAN II

varioSCAN II

  • Analog and digital control signals



varioSCANde II 20i

varioSCANde II

  • Higher dynamic range
  • Larger z stroke
  • Better position stability
  • Read-back function



varioSCAN II FLEX

varioSCAN IIFLEX

  • Variably adjustable image field size and working distance
  • FLEX housing with integrated controller boards

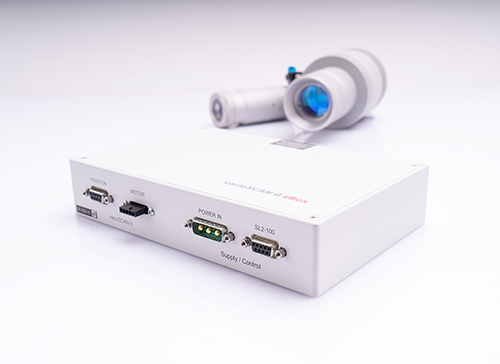

varioSCAN II eBox

  • Electronic cards in a compact box
  • Flat design that creates flexible integration options
  • Rear drilling pattern also suitable for upright installation
  • EMC and RoHS compliant
  • Improved thermal management
  • SL2-100 and XY2-100 variants available
varioSCAN II eBox

Combinable products

더 궁금한 점이 있으십니까?

저희는 언제나 고객 여러분을 도와 드릴 준비가 되어 있습니다!

전화 +49 89 800 746-0

Video

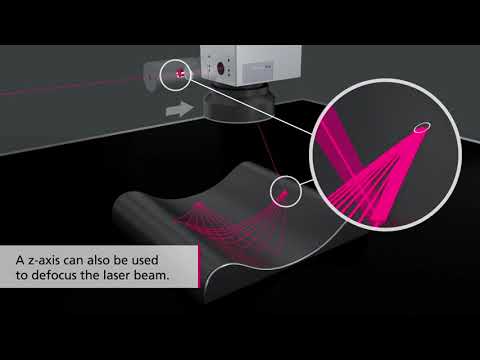

3D Laser Application With a Z Axis

varioSCAN

Video

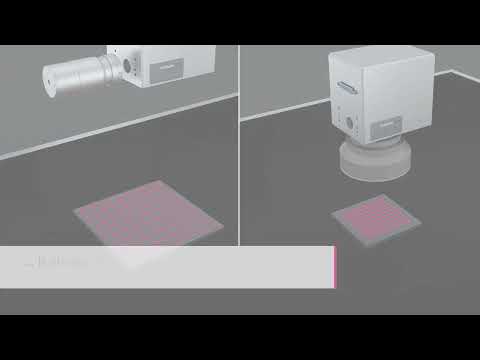

Laser Scanner Flat Field Correction Options
